Add Installation Part to MNT Card

Purpose: To add an installation part (line type 32) to an in house card on an aircraft maintenance work order.

NOTE: This process does not perform the installation procedure (link pending) required to add the component to the aircraft records.

NOTE: This process is identical when the card is in edit mode and when it is not.

1. Initiate the addition of the installation part(n) in reference to work orders, a component which is listed to be installed on the aircraft or assembly during the course of the work order and identifed by the line type '32':

   NOTE: There are two (2) methods for initiating the addition of an installation part:

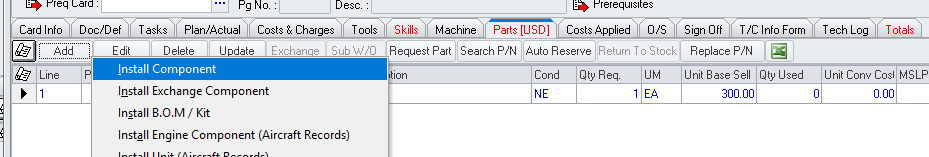

1. From the Parts tab of the card:


   Left-click the Add button then left-click Install Component.

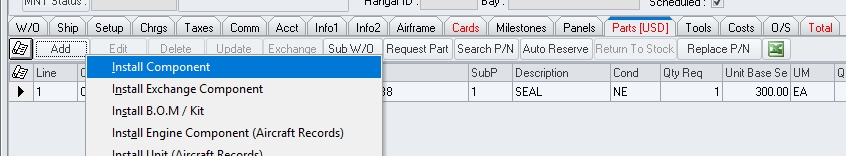

2. From the Parts tab of the MNT work order:



1. Left-click the Add button then left-click Install Component

2. The Maintenance Card search window will appear.



3. The card to which the installation part should be added may be selected by double-clicking the applicable record or by highlighting the applicable record and left-clicking the OK button.

2. The Partnumber search window will appear.


3. The part(s) that should be added to the card as installation parts may be selected by highlighting the applicable record(s) utilizing the left-click, the Mark All button and/or the UnMark All button and then left-clicking the OK button.
4. The installation part(s) will be added to the grid on the Parts tab of the card.
